悬垂线夹XGU-5B,XGU-6B,XGU-7B,XGU型

产品详情

型号Catalog No.	适用导线范围 Applicable Conductor(mm)	主要尺寸Dimensions(mm)			标称破坏荷重 Rated Failure load(kN)	重量 Weight (kg)
型号Catalog No.	适用导线范围 Applicable Conductor(mm)	H	L	R	标称破坏荷重 Rated Failure load(kN)	重量 Weight (kg)
XGU-5B	23.0-33.0	137	300	17	70	5.3
XGU-6B	34.0-45.0	143	300	23	70	5.8
XGU-7B	45.0-48.7	156	300	26	70	6.2

线夹本体、压板和碗头挂板为可锻铸铁件，闭口销为不锈钢制件，其余为钢制件。可锻铸铁件和钢制件热镀锌。
The clamp boady,keeper and socket-clevis are malleable iron,the closed-pine is stainless
steel work.The other parts are steel.All ferrous parts are hou-dip galvanized.

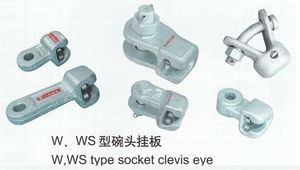

碗头挂板(加长WS型）WS-7AG,WS-16A,WS-21B
